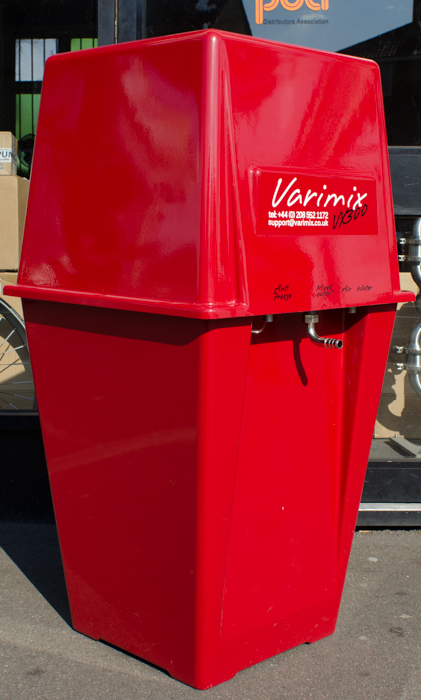

VX300 - 1/2" Floor Standing

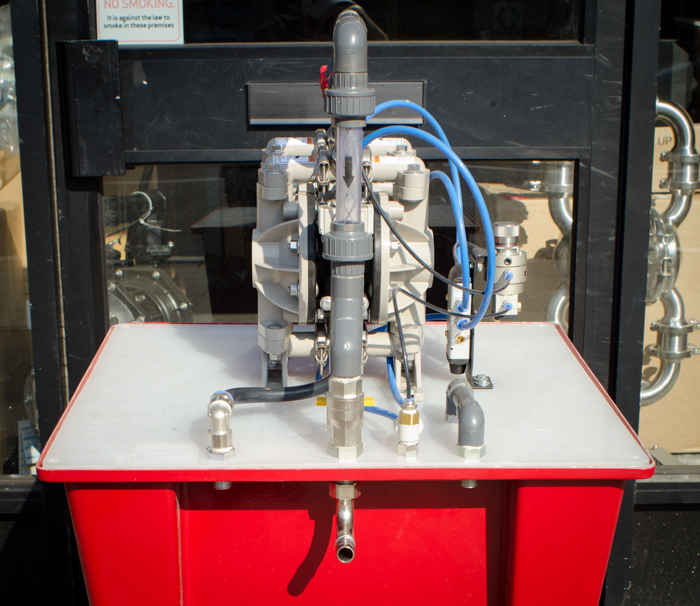

The VX300 is our classic unit, updated for 2013. Based on our original Varimix VX202 Quarter Inch, the VX300 has been tweaked and tuned redesigning the box, the equipment and the pump specifications. This newly updated facility runs on a ½" bore giving a far greater pump efficiency along pipe lengths and also a much greater delivery / pressure at your drops. This allows the pumps to operate on a largely reduced stress level. Running on full out with two ½" pumps, this unit can mix anti-freeze and water at a constant 57 litres per minute. Coupled with a full Varimix pipe work install from Air Pumping, your mixed fluid can be delivered at any position of your choice. Anti-freeze concentration can be specifically selected at point of mix, ranging from 25%, 50%, 75% or full 100% anti-freeze delivery. These levels are pre-set, selected to give any required mixture level for your fleet.

If you would like to find out more information on our current units, please check the link at the top of the page where we still have detailed info on the classic series units. We are always happy to hear from our clients to, whether it's for enquiries or support - just give us a call!

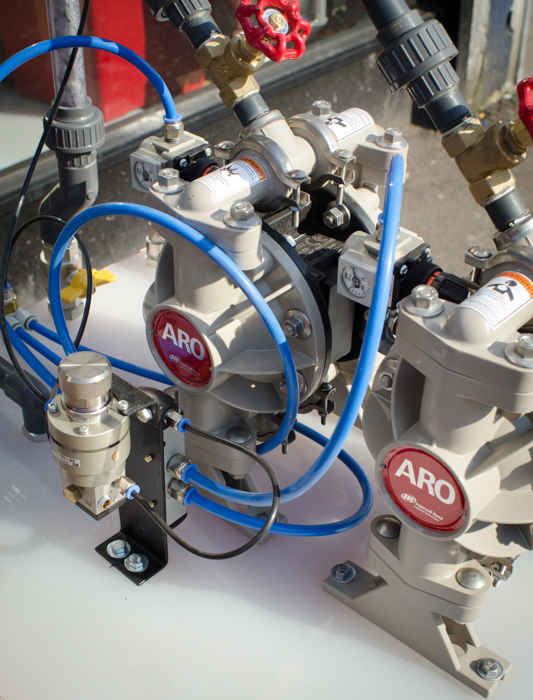

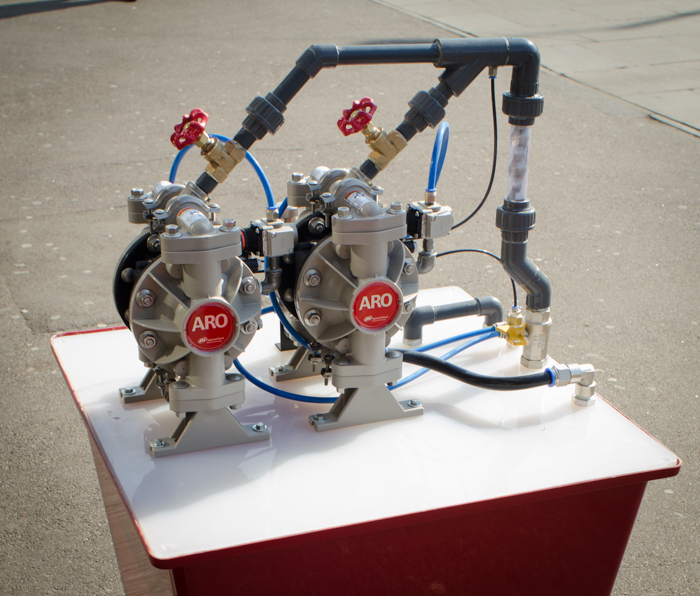

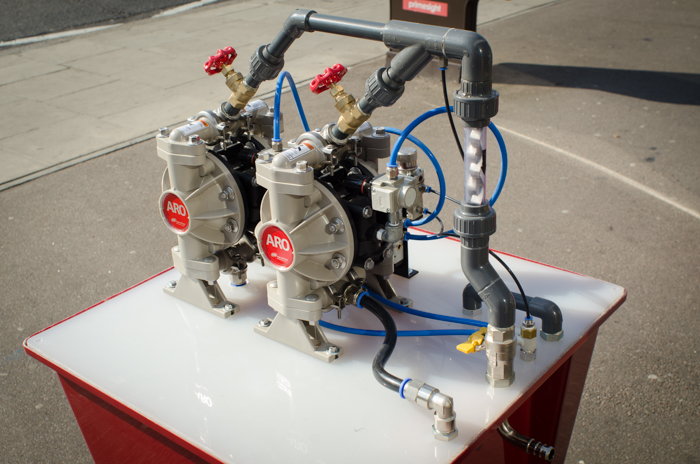

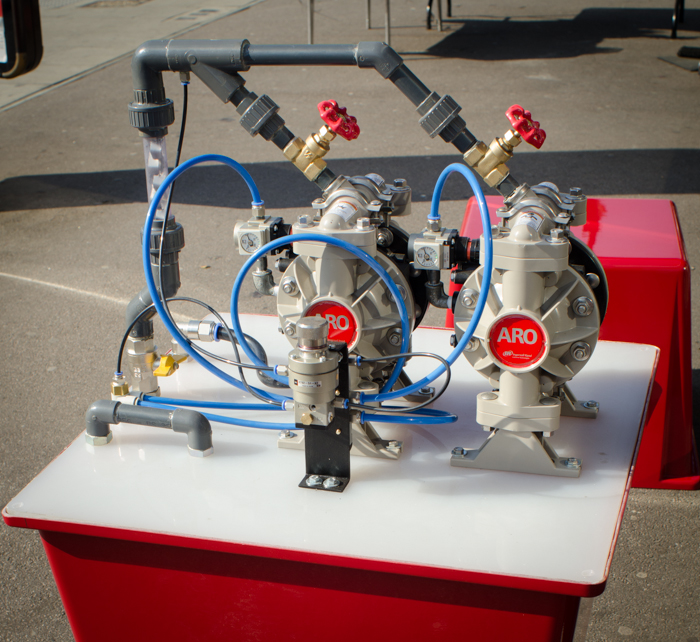

Pump Models: 2 x ½" APA05/PS
Pump Materials: Polypropylene, Santoprene
Varimix Materials: Fibre Glass, Polypropylene
System Weight (Dry): 88 lbs (40 kgs)
System Weight (Full): 374 lbs (170 kgs)
Max. Flow Rate: 13 gpm (57 lpm)
Max. Suction Lift: 10 ft / 6 mtr s(Dry)
Max. Output per Cycle: 0.15 gallons (0.04 litres)
Max. Particle Size: 3/32" (2.4 mm)
Max. Temp. Limits: 35°f - 150°f (2°c - 66°c)
Unit Dimensions: 1240mm x 640mm x 640mm (48.8" x 25.2" x 25.2")
Noise Levels @ 70psi: 71.1 db (A)
